Products Introduction:
XR104 activated alumina for dechlorination is an adsorbent used to adsorb and remove chloride from Naphtha, natural gas, H2, N2, NH3, CO, CO2 & other feed gas in petrochemical. It is good effeient to remove chloride
Product Information:

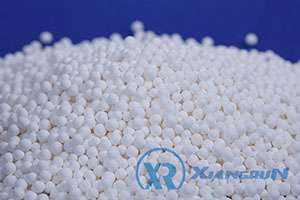

In petrochemical production process, chlorine in feed gas could cause poisoning of a variety of catalyst and adsorbent, the failure of adsorbent & catalyst performance, severely corrosivity of devices & equipment, so chlorine removal is necessary. Usually, we adopt solid antichlor to remove chloride in feed gas. XR-104 activated alumina balls for removal of chloride is an high- efficient product to take off chlorine.
lVarious size available for the international condition.
1/8” (3.2mm), 3/16”(4.7mm)
Characteristics of Activated alumina for removal of chloride:
lUniform size
lEven and Uniform activity under high and low temperature
lGood water resistance and strong strength
lUneasy movable active components & chlorine after reaction
lWide application area
Working service of Activated alumina for removal of chloride:
Working temperature:5-400℃
Working pressure: ordinary pressure- 0.8MPA
Space velocity: 1000-3000h-1
Bed height-diameter ratio: ＞3
Dechlorination ratio: ≥99.9%
|
Item |
Unit |
Technical requirement |
|
Appearance |
White bead | |
|
Particle size |
mm |
3-5mm, 2-4mm |
|
AL2O3+promotor |
% |
≥93 |
|
Bulk density |
g/cm3 |
0.75-0.8 |
|
Surface area |
㎡/g |
≥130 |
|
Pore Volume |
ml/g |
≥0.4 |
|
Penetration of chlorine capacity(50℃) |
% |
≥12 |
|
Penetration of chlorine capacity(250℃) |
% |
≥22 |
|
Crushing Strength (N/Particle) |
N/particle |
≥85 |
Application of Activated alumina for removal of chloride:
XR-104 activated alumina ball for dechlorination is widely used for HCL removal(dehydrochlorinate) in syngas, catalyst & adsorbent protection, and dechlorination from Naphtha, natural gas, H2, N2, NH3, CO, CO2 & other feed gas.
Storage of Activated alumina for removal of chloride:
lAvoid moisture, avoid scrolling, throw and sharp shocking during transportation, rainproof facilities should be readied..
lIt should be stored in dry and ventilated warehouse to prevent contamination or moisture.
Package of Activated alumina for removal of chloride:
|
Type |
Plastic bag |
Drum |
Drum |
Super sack/Jumbo bag |
|
Bead |
25kg/55lb |
25 kg/ 55 lb |
150 kg/ 330 lb |
750kg/1650lb 900kg/1980lb 1000kg/ 2200 lb |
