Alumina Catalyst Support Meida
WRITER:admin  JOIN IN:2015-12-31
CLASSES:Alumina Catalyst

Products Introduction:

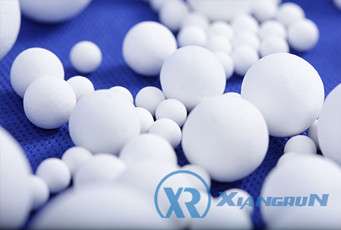

XR3015 Alumina catalyst support balls, also called alumina ceramic filling balls and alumina ceramic packing balls, supports the gas or liquid distribution and protects active catalysts.It is used for catalyst bed support balls. XR3015 alumina catalyst support media is used as catalyst, absorbent, desiccant and drying agent in petroleum, chemical, fertilizer, natural gas and environmental protection industries. As packing and supporting media in catalyst reactor coverage tower, high alumina ceramic ball is to increase distribution of gas or liquid, support and protect the intensity of low strength activity catalyst.

Xiangrun 99 alumina support media is equal to Denstone 99 support media. High alumina content 99+% and maximum 0.2wt% SiO2 have made our alumina support ball an ideal product for high temperature and steam applications, such as secondary reformers in ammonia processing. As our alumina support ball features high density, high temperature resistance 1600°C, it is perfect for use as heat retention or equilibration media. In addition, great chemical resistance has resulted in our alumina support ball popular for applications in olefin processes, such as ethylene dryers where there is polymerization problem.

Characteristics:

 lSize:3mm,6mm,8mm,10mm,13mm,16mm,19mm,25mm,30mm,38mm,50mm,65mm,70mm

lhigh specific gravity and high density lLow abrasion, corrosion resistance and wear resistance

lwithstands high temperatures of more than 1600ºC. It is resistant against acid, alkali and corrosion.

l92% alumina ceramic balls and 99% alumina ceramic balls content for your requirement.

Item

Unit

Technical requirement

Particle size

mm

0.5~95

Series

XR3015@30

XR3015@92

XR3015@99

AL2O3

%

> 92%

≥92

≥99

SiO2

%

≤5

≤5

Fe2O3

%

<1%

≤0.23

≤0.04

Mosh hardness

>6.5

≥9

≥9.5

Water adsorption

%

<0.5

≤4

≤5

bulk density

g/ml

  1.35-1.4

≥1.9

≥2

Volume density

ml

2.3-2.4

≥3.2

≥3.1

Applications of catalyst support media:

Ammonia production: Max. operating temperature 1250°C, Max. pressure 3500KPa

Methanol and hydrogen production Alkylation process using hydrogen fluoride at high temperature

Naphtha reforming

Isomerization

Storage:

lAvoid moisture, avoid scrolling, throw and sharp shocking during transportation, rainproof facilities should be readied.

lIt should be stored in dry and ventilated warehouse to prevent contamination or moisture.

Package:

Type

Paper bag

Steel Drum

Beads

25kg/55lb

150 kg/ 330 lb
