Products Introduction:

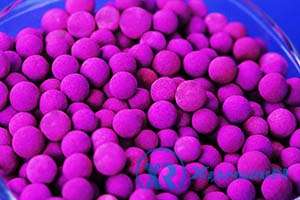

XR2006®M impregnated activated alumina with potassium permanganate(KMNO4) media(also called potassium permanganate impregnated activated alumina) is a chemisorbent, filtering by adsorption and then oxidation, and has a low pressure drop due to its uniform size and spherical shape.
XR2006®M impregnated activated alumina with KMNO4 media is a high surface area activated alumina pellet, impregnated with potassium permanganate during its manufacturing. Xiangrun filtration media adopts mixing material technology, not immersion.The result is a chemical filter with enhanced performance in removing Hydrogen Sulfide (H2S), Sulfur Dioxide (SO2), Nitrogen Dioxide (NO2), Mercaptans, as well as light organics from airstreams. It highly adsorb ethylene, so it is as ethylene filter or ethylene adsorber. XR2006®M KMNO4 impregnated activated alumina media is a chemisorbent, filtering by adsorption and then oxidation, and has a low pressure drop due to its uniform size and spherical shape.
Characteristics:
lHigh bulk density
lUniform size and even color
lHigh mechanical strength and wear resistance
lHigh pore volume and high adsorption
l6%-12% KMNO4 content
lMixed material technology
Condition:
• Temperature: -20°C to 51°C (-4°F to 125°F)
• Humidity: 10% to 95% RH
• Airflow: Ranging from less than 25 cfm (42.5 m3 /hr.) to over 100,000 cfm (169,920 m3 /hr.), with velocities from 50 fpm (0.254 m/s) to 500 fpm (2.54 m/s)
|
Item |
Unit |
Technical requirement | ||
|
Particle size |
mm |
2-4 |
3-5 |
4-6 |
|
AL2O3 |
% |
≥80 |
≥80 |
≥80 |
|
KMnO4 |
% |
6-10 |
6-10 |
6-12 |
|
Bulk density |
g/ml |
0.85-0.9 |
0.85-0.9 |
0.85-0.9 |
|
Surface area |
㎡/g |
≥250 |
≥250 |
≥250 |
|
Pore Volume |
ml/g |
≥0.42 |
≥0.42 |
≥0.42 |
|
Crushing Strength (N/Particle) |
N/particle |
≥50 |
≥80 |
≥100 |
|
Pressure Drop @ 50 fpm (0.25 m/s): |
1.0 in. of water/ft. of bed |
1.0 in. of water/ft. of bed |
1.0 in. of water/ft. of bed | |
|
H2S Capacity |
g/ml |
0.85-1.2 |
0.85-1.2 |
0.85-1.2 |
|
Type |
Paper bag |
Paper Drum |
Steel Drum |
|
Beads |
25kg/55lb |
25 kg/ 55 lb |
150 kg/ 330 lb |
